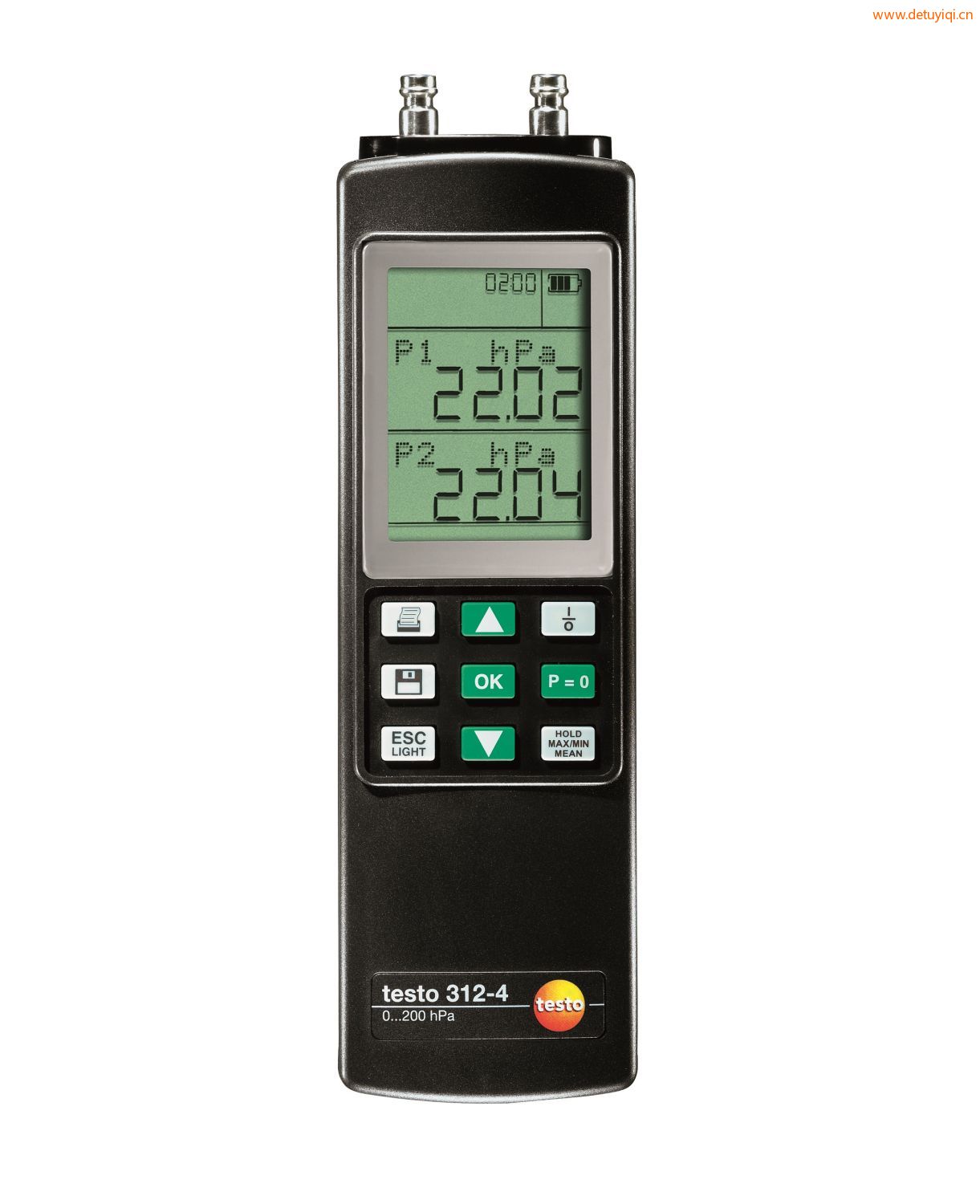

壓差測量儀-testo 312-4

【型　　號】testo 312-4

【品　　牌】德國德圖TESTO

【主要指標】測量范圍 0 ~ 200 hPa

【技術指標】
testo 312-4 - Differential pressure measuring instrument

訂貨號  0632 0327

    Gas-tightness and serviceability test by pressure drop on gas pipes according to DVGW-TRGI 2008

    Load test on gas pipes according to DVGW-TRGI 2008 with the help of the high pressure probe

    Pressure tests on drinking water pipes with water using the high-pressure probe according to DIN 1988 (TRWI) as well as with air accoding to the ZVSHK information sheet

    Pressure test on waste water pipes according to DIN EN 1610

You can carry out all the necessary tests on gas heating systems as well as water and gas pipes with the testo 312-4 electronic differential pressure measuring instrument. Preset measuring processes, for example for load and tightness tests as well as serviceability testing on gas pipes, provide you with ideal support for your work.

產品描述

A variety of directives describe the tests which have to be carried out before commissioning water and gas pipes. The testo 312-4 differential pressure measuring instrument offers measuring processes for load and tightness tests as well as serviceability tests on gas pipes using air. It also enables the checking of static gas and gas flow pressures, as well as the nozzle pressure setting on gas burners or boilers.

These measurements are possible with the testo 312-4 differential pressure measuring instrument

• Tightness and serviceability testing by pressure drop on gas pipes in accordance with DVGW TRGI 2008
• Load testing on gas pipes in accordance with DVGW-TRGI 2008 using our high-pressure probe (can be ordered as an option)
• Pressure testing on drinking water pipes using water and with the support of the optional high-pressure probe in accordance with DIN 1988 (TRWI) and using air in accordance with the ZVSHK information sheet
• Pressure testing on waste water pipes using our high-pressure probe (can be ordered as an option)
• Checking the gas pressure regulator by recording the readings over a defined period (max. 25,000 readings)
• Checking the gas connection and gas flow pressure, as well as setting the nozzle pressure on gas burners and boilers

Practical features of the differential pressure measuring instrument

The testo 312-4 pressure measuring instrument offers a high level of operating convenience in order for you to carry out pressure measurement efficiently – for instance through preset measuring processes or the clear presentation of readings on the large display. The testo fast printer, which can be ordered as an extra, means you can produce measurement data printouts directly on site. The easyheat PC software is available to you as an option for data transfer and evaluation. Furthermore, probes which are also available for various measuring tasks can be attached to the differential pressure measuring instrument (e.g. high-pressure probe or thermocouple probe for temperature measurement).

產品包含

testo 312-4 differential pressure measuring instrument, including battery and calibration protocol.

Type K (NiCr-Ni)

測量范圍	dependent on probe type used
測量精度	±0.4 °C (-100 ~ +200 °C)* ±1 °C (其余量程)*
分辨率	0.01 °C

差壓(內置傳感器)
測量范圍	0 ~ 200 hPa
測量精度	±0.03 hPa (0 ~ +3 hPa) ±1.5 %測量值 (+3.1 ~ +40 hPa) ±2 hPa 或 ±1 % 全量程 (41 ~ +200 hPa)
分辨率	0.01 hPa

壓力測量(外置探頭)
測量范圍	0 ~ 25 bar
測量精度	±0.6 % 全量程 (0 ~ 10 bar) ±0.6 % 全量程 (>10 ~ 25 bar)
分辨率	10 hPa

技術參數
重量	600 g
直徑	219 x 68 x 50 mm
紅外打印機	紅外界面
保修	2年
測量比例	auto 1 s to 24 h; fast 0,04 s
數據傳送	RS 232
PC軟件	Easyheat
內存	25,000 測量值
